Top Load Air wipe

                                                                 U. S. Patent Office Publication No. US-2015-0013105-A1


COSMOS innovated the Top Load Air Wipe AWM 71 featuring:


          check mark    Supersonic Air Wiping
          check mark    Easy threading
          check mark    Extended service life
          check mark    Low air consumption
          check mark    Knot passing

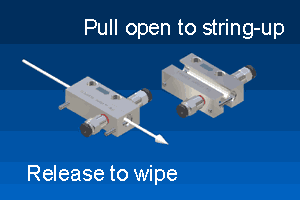

A spring tension plus the surrounding air pressure keeps the air wipe closed yet it opens readily to passing knots.The very low air consumption is registered in a Performance Data Sheet for reference on the shop floor. The wear components carry a 2-years warranty.

Four (4) wiping cylinder of bore diameters 2, 3, 4, 5 mm are offered, recommanded for wiping wire
diameters 1.6, 2.6, 3.6, and 4.6 mm respectively, at the optimum efficiency. You can also wipe wires
of less then the recommended diameter at a lower efficiency, without adverse consequences.
